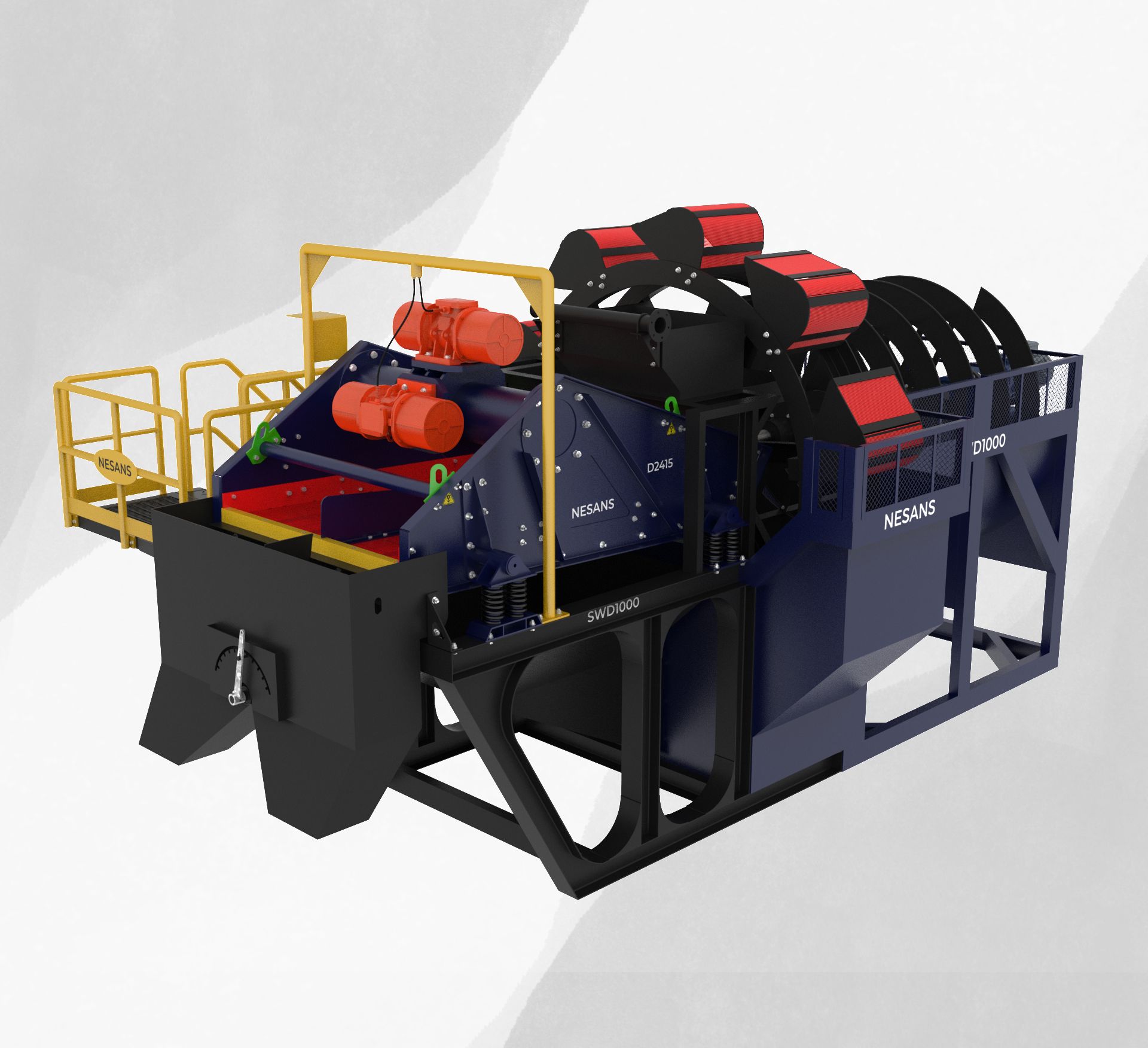

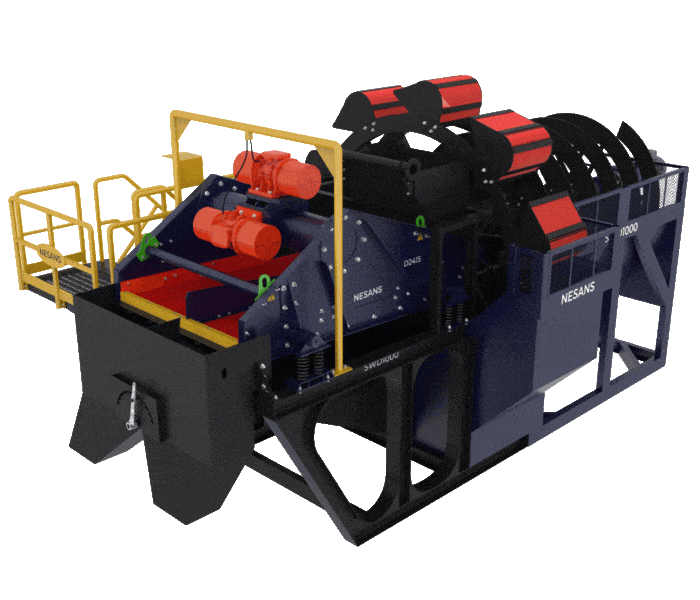

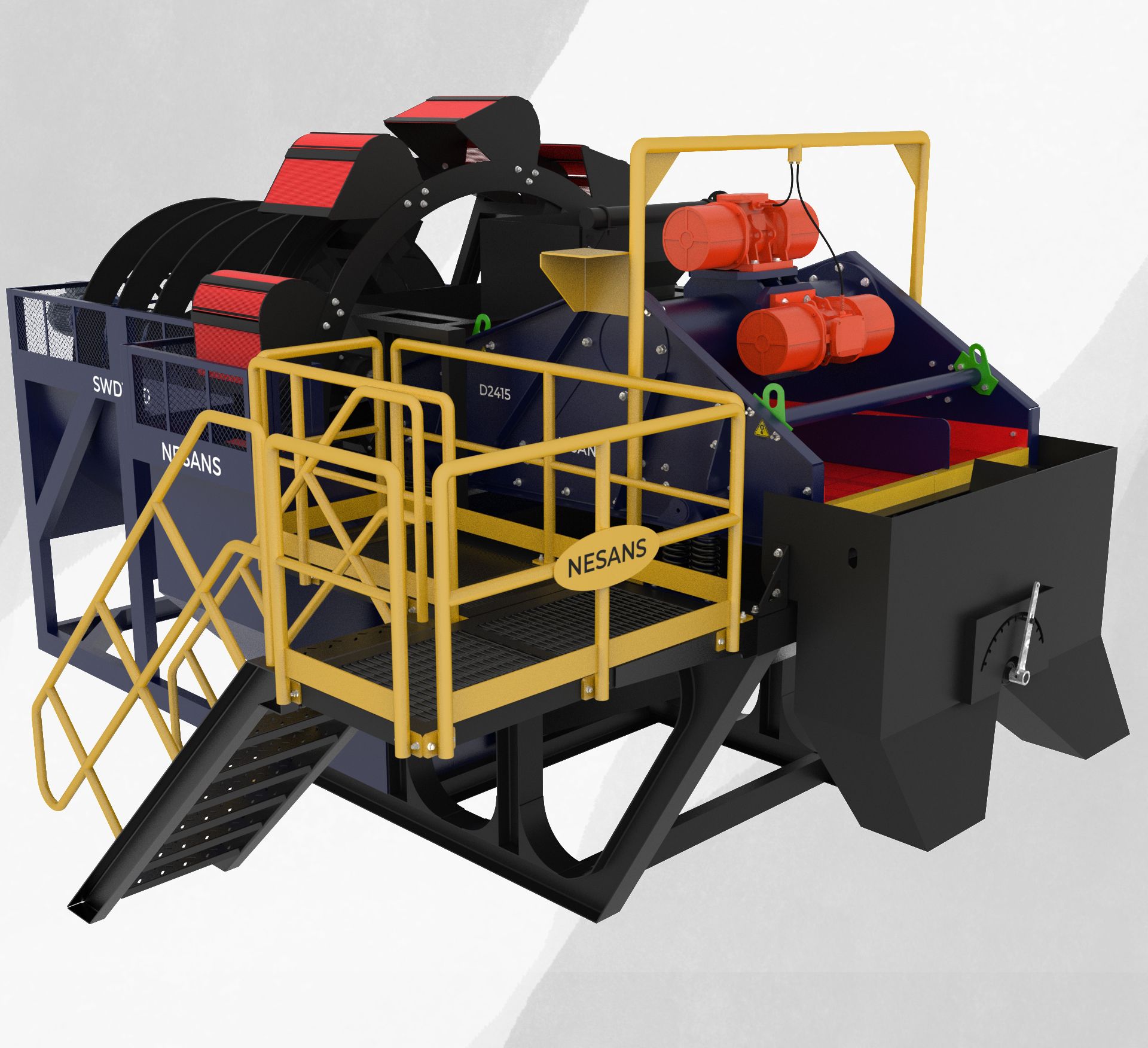

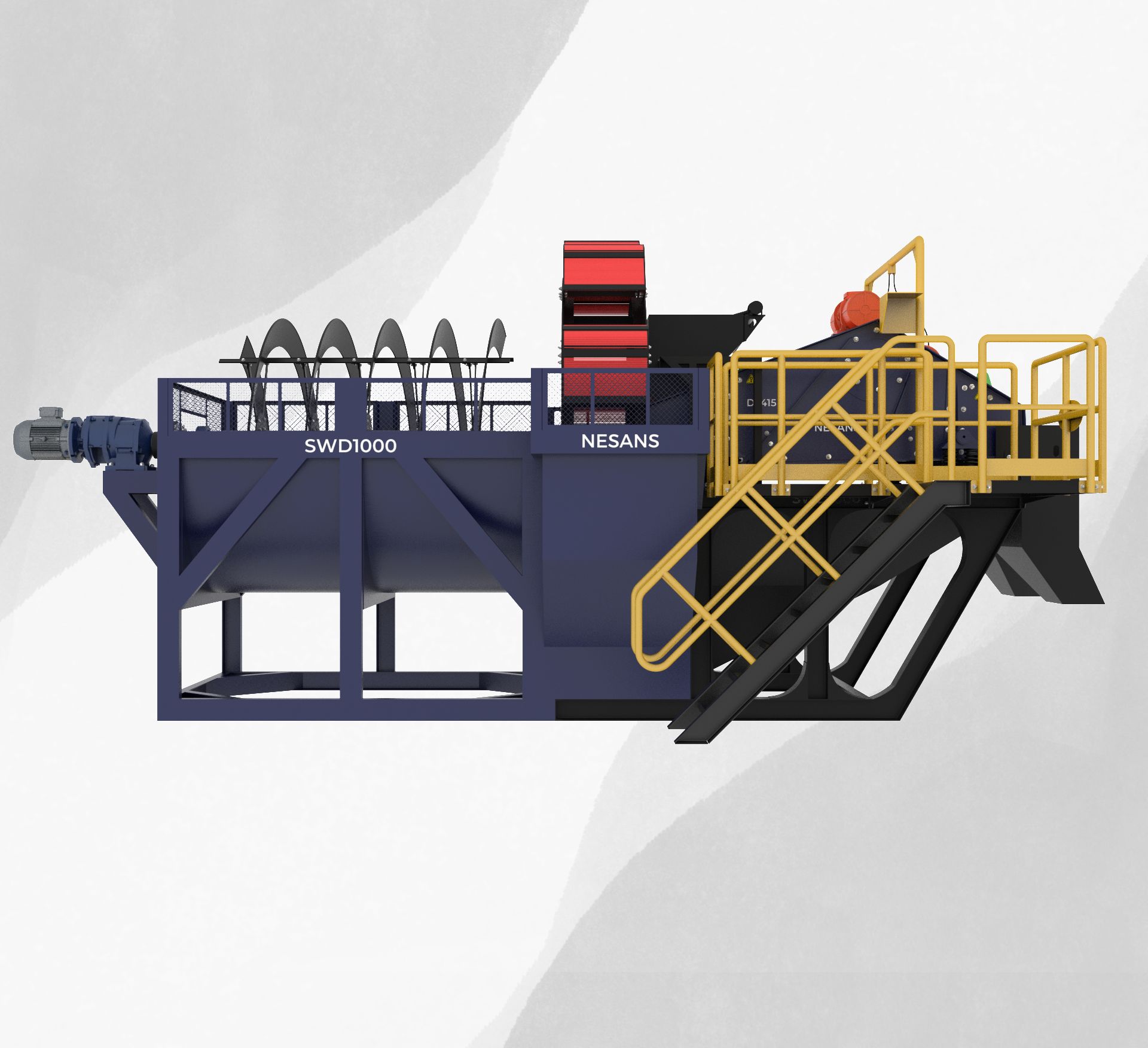

Bucket Sand Washer - SWD Series
The Nesans SWD Series Bucket Sand Washer is a robust and efficient sand cleaning system designed to remove silt, clay, and other impurities from coarse aggregates. Utilizing a slow-rotating bucket wheel mechanism, the machine ensures gentle scrubbing and effective separation of contaminants, delivering a clean, dewatered sand product suitable for a variety of construction applications.
One of the key advantages of the SWD Series is its ability to produce dual-grade sand. By separating heavier coarse particles from lighter fines during the washing cycle, the system enables producers to recover two distinct fractions of sand in a single operation—making it ideal for applications requiring both plaster and concrete-grade outputs. This feature adds significant value and flexibility to operations with diverse sand quality requirements.
Built for long-term performance, the SWD Series features a simple design with low wear and energy consumption, minimizing maintenance and operational costs. Whether used as a standalone washer or integrated into a larger sand processing plant, it offers dependable, low-footprint performance while maintaining consistent sand quality and maximizing usable yield.
Applications:
How It Works

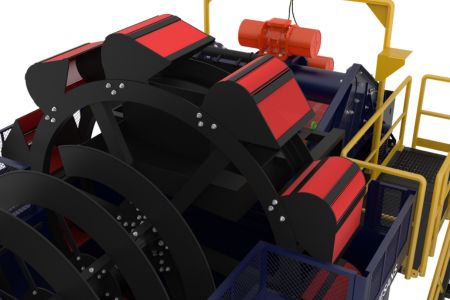

The Nesans SWD Series operates through a mechanical scrubbing and dewatering cycle using a rotating bucket wheel and a specially designed screw guide. When slurry enters the water tank, heavier sand particles settle at the bottom while lighter silt and clay remain suspended. A slow-rotating bucket assembly gently scoops the settled sand, allowing excess water to drain through the perforations before the sand is discharged as the primary, clean product.

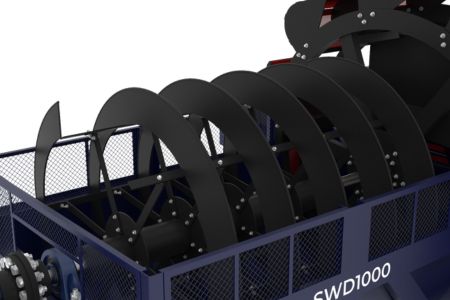

During this process, some coarse particles may settle away from the bucket pickup path and risk being carried away with the overflow. To prevent this, a screw guide is positioned at the bottom of the tank, continuously pushing these settled particles back into the active washing zone, ensuring maximum sand recovery and minimal material loss.
Meanwhile, the overflow water carrying fines and impurities is safely discharged from the weir section, completing the washing cycle. This combination of gentle bucket action and coarse recovery via the screw ensures consistent sand quality, dual-grade separation, and efficient resource utilization.
Features and Advantages
Specifications
| Model No. | Rotor Speed (rpm) | Max Feed Size (mm) | Drive Motor Power (kW) | Dewatering Screen Power (kW) | Capacity (mtph) |
|---|---|---|---|---|---|
| SWD600 | 3.6 | -5 | 3.75 | 2 X 1.5 | 50 |
| SWD800 | 3.6 | -5 | 5.5 | 2 X 2.2 | 75 |
| SWD1000 | 3.6 | -5 | 5.5 | 2 X 3.7 | 100 |
| SWD1500 | 3.2 | -5 | 7.5 | 2 X 3.7 | 150 |
| SWD2000 | 3.2 | -5 | 10 | 2 X 5.5 | 200 |
| SWD2500 | 3.2 | -5 | 15 | 2 X 5.5 | 250 |
| Model No. | Rotor Speed (rpm) | Max Feed Size (in) | Drive Motor Power (HP) | Dewatering Screen Power (hp) | Capacity (stph) |
|---|---|---|---|---|---|
| SWD600 | 3.6 | -1/4 | 5 | 2 X 2 | 55 |
| SWD800 | 3.6 | -1/4 | 7.5 | 2 X 3 | 82 |
| SWD1000 | 3.6 | -1/4 | 7.5 | 2 X 5 | 110 |
| SWD1500 | 3.2 | -1/4 | 10 | 2 X 5 | 165 |
| SWD2000 | 3.2 | -1/4 | 15 | 2 X 7.5 | 220 |
| SWD2500 | 3.2 | -1/4 | 20 | 2 X 7.5 | 276 |

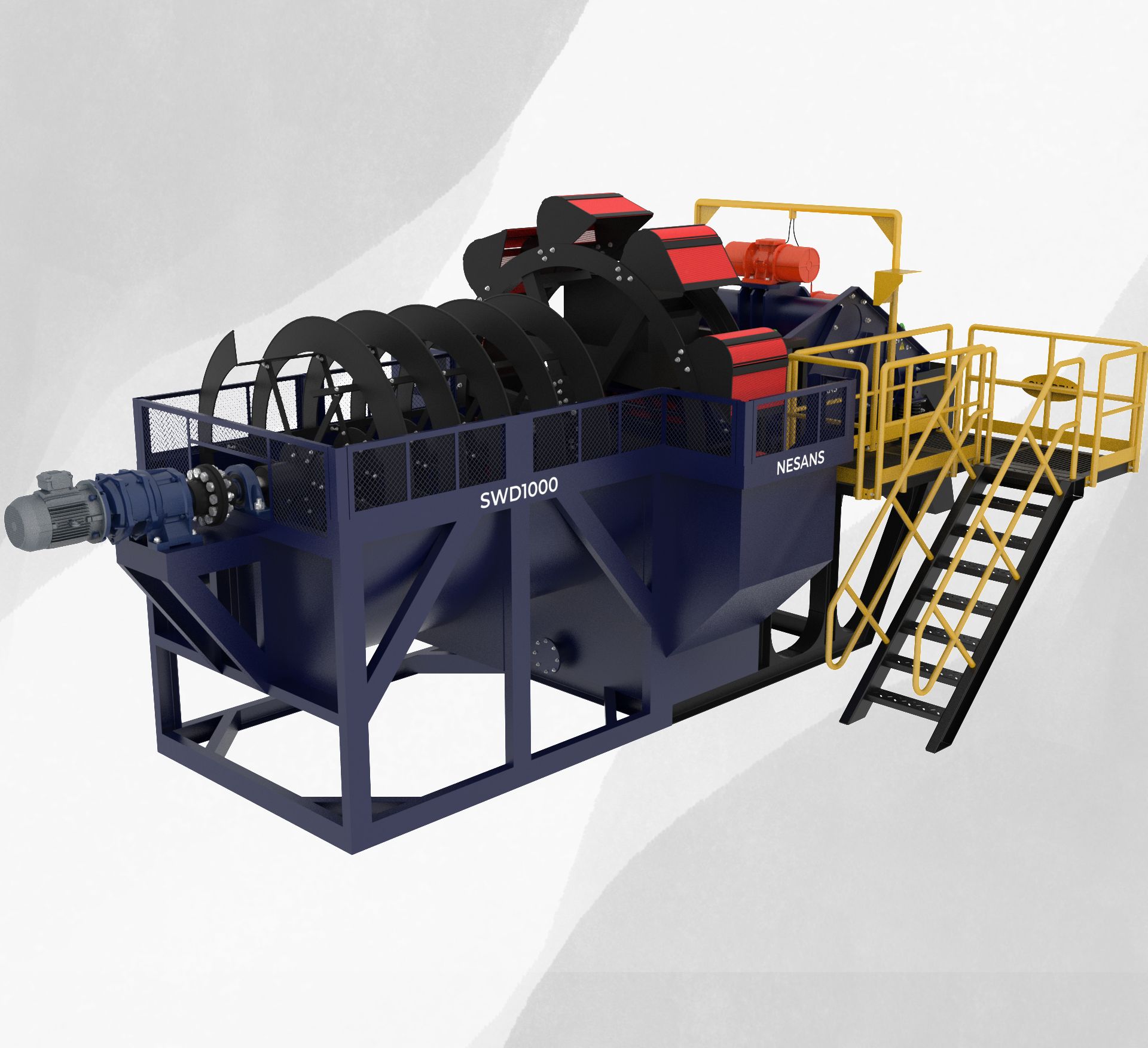

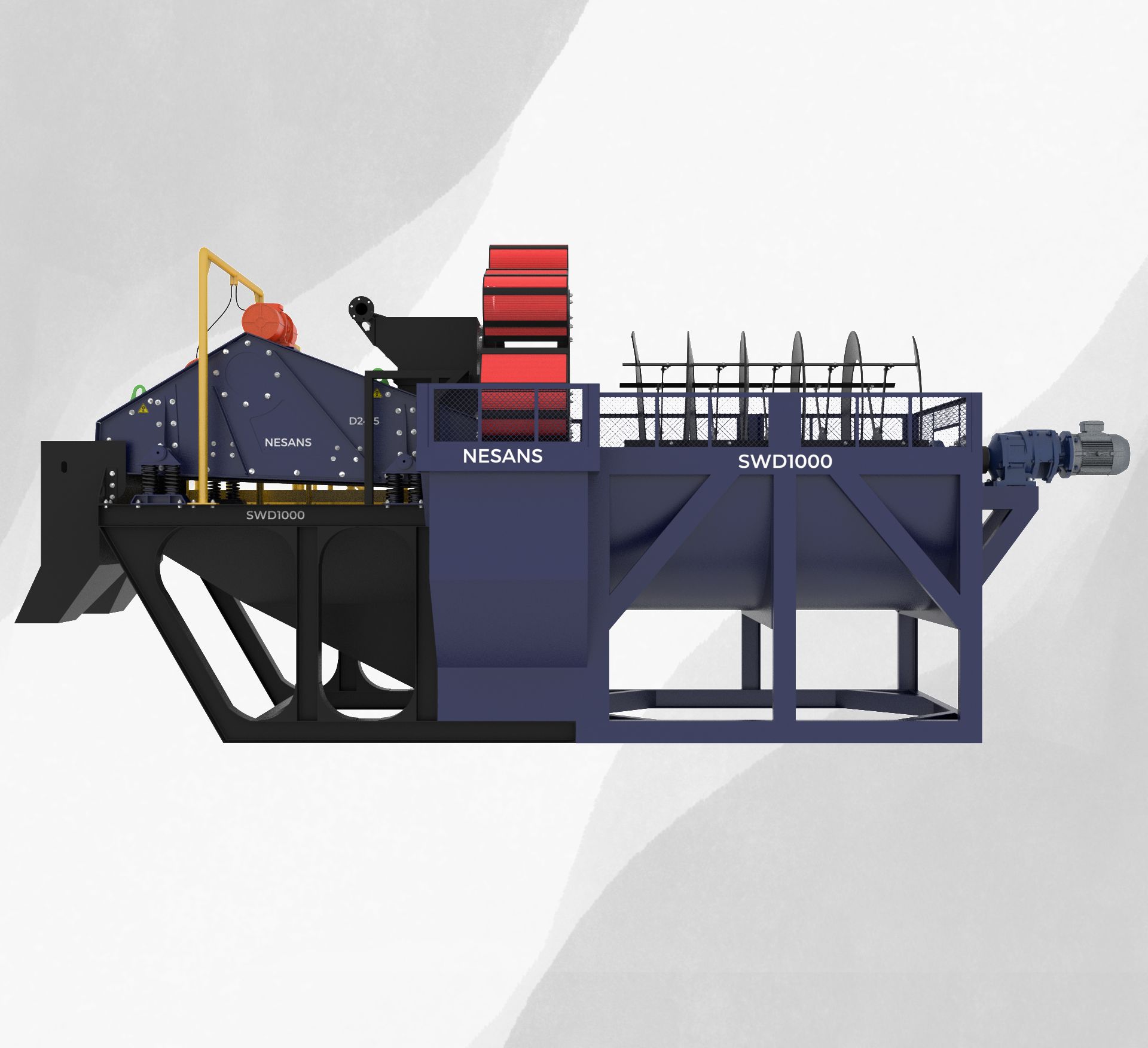

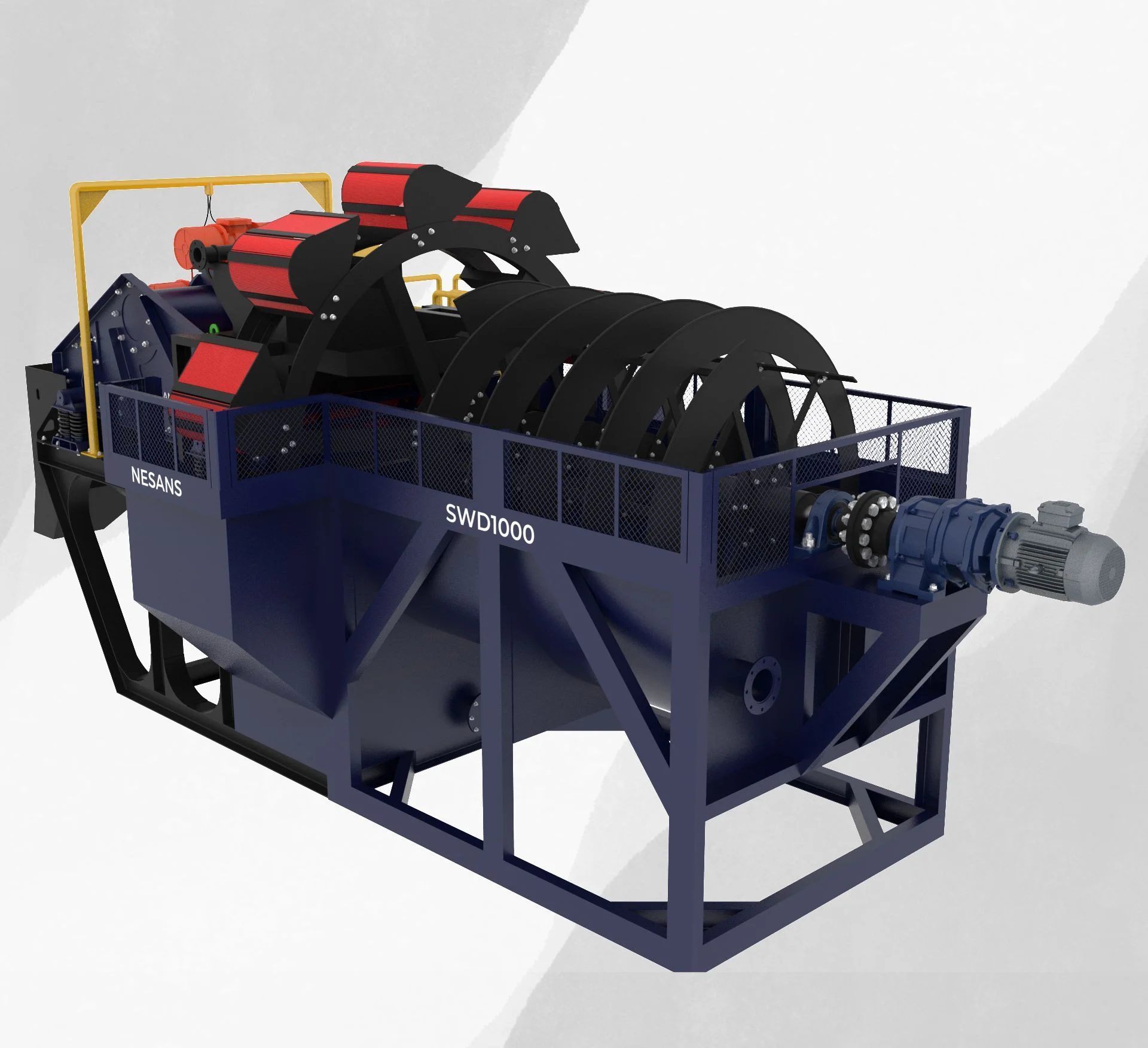

Product Gallery
Relevant Products
FAQs
The Bucket Washer is a simple and cost-effective sand washing machine that removes silt, clay, and impurities from sand. Unlike conventional bucket wheels, our design uses buckets along with a screw guide that pushes the material into the washing zone, ensuring more effective cleaning.
It is suitable for:
- Manufactured Sand (M-Sand) with low fines
- River Sand
- Quarry sand with minimal clay content
Feed should be well-graded sand with low clay and fines content. Very dusty or clay-heavy material may not be effectively cleaned.
- Bucket paddles
- Screw flights
- Drive chains and sprockets
- Bearings and seals
It has few moving parts, no pumps, and no complex hydrocyclones, making it an easy-to-use entry-level sand washing solution.
- Low initial investment compared to advanced systems
- Simple operation and low manpower requirement
- Easy maintenance with fewer moving parts
- Compact footprint
- Bucket Washer: More economical, simpler, slightly higher moisture.
- Cyclone systems: Cleaner sand, controlled fines removal, lower moisture, but higher investment.
Not recommended. For silica or industrial sands where ultra-clean quality is needed, advanced washers like Apex Wash are better suited.
If sand lifting is inefficient, paddles are worn. If discharge sand looks dirtier than before, or the drive produces abnormal noise, it’s time for replacement.
- When budget is limited
- When feed material is already relatively clean
- For small-to-medium quarries or contractors
- When basic washing is sufficient
