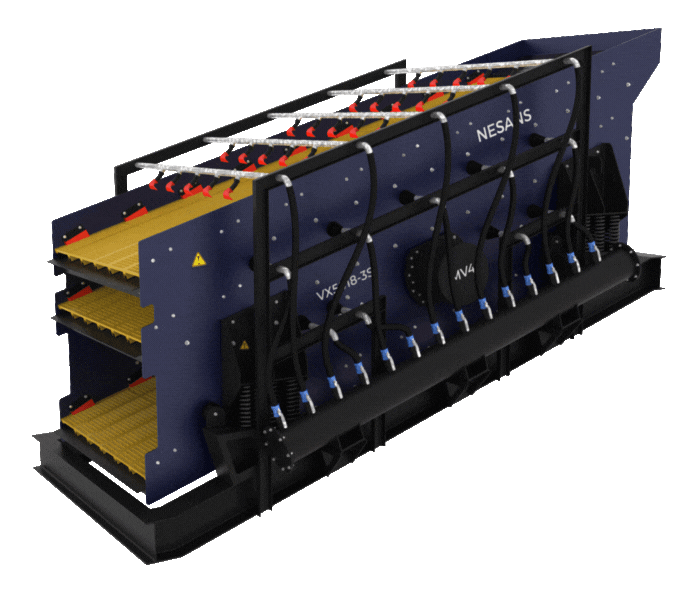

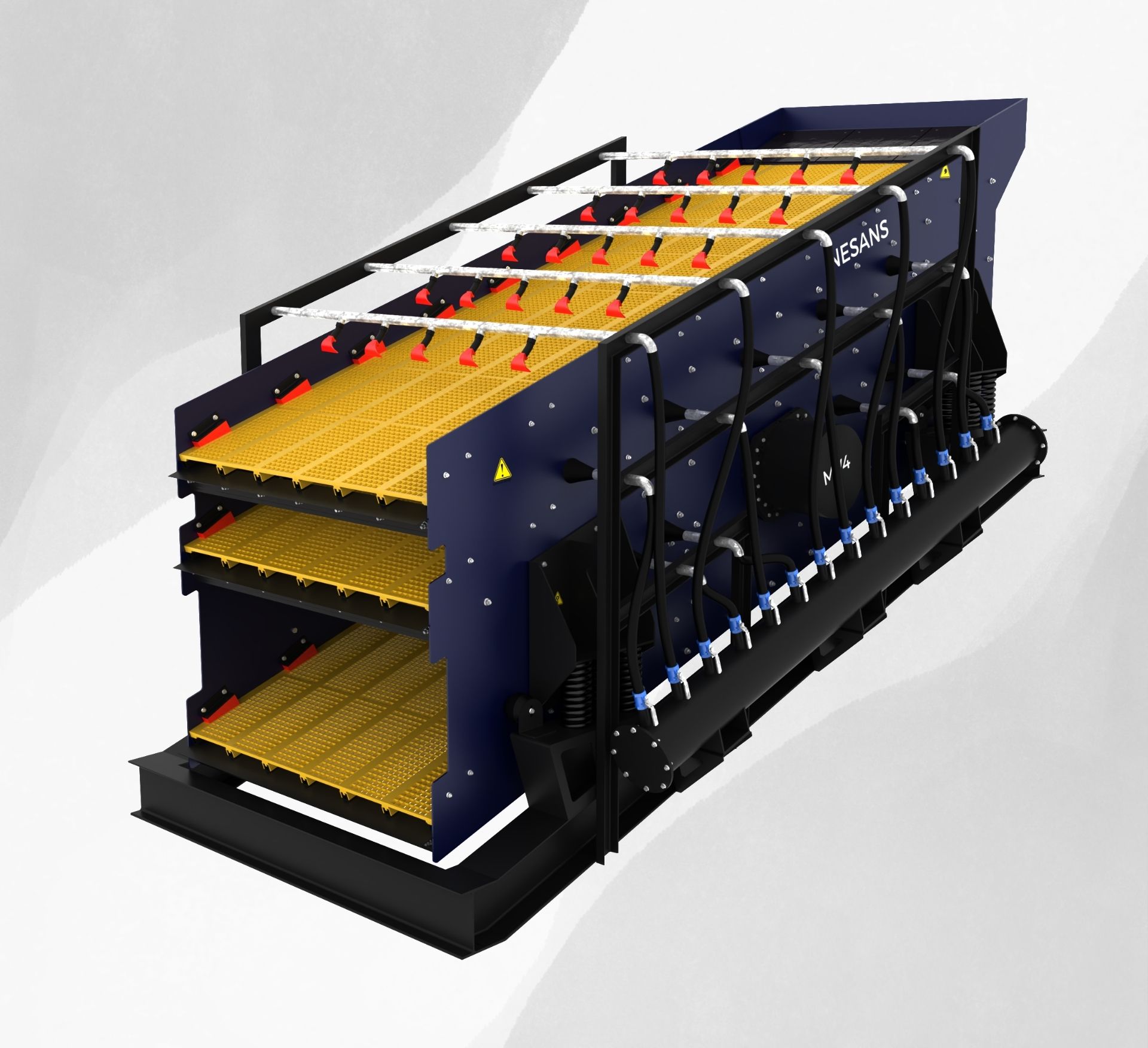

Modular Vibrating Screen - VX Series

The Nesans VX Series Modular Vibrating Screens are engineered to deliver high-efficiency screening for both dry and wet applications, making them a versatile choice for a wide range of material separation needs. Built on a modular platform, these screens combine durability with flexibility, allowing for easy configuration and maintenance based on plant requirements.

Designed with precision screening in mind, the VX Series features high-frequency vibration and optimized deck arrangements to ensure accurate stratification and maximum throughput. Whether it’s dewatering, wet classification, or dry grading, the VX Series adapts effortlessly to varying moisture levels and material characteristics, providing consistent and reliable performance.

Its modular build enables quick panel replacement and reduced downtime, while heavy-duty construction ensures long operational life even under demanding conditions. Whether used in aggregates, mining, or industrial minerals, the Nesans VX Series stands out as a dependable and efficient screening solution.

Applications:

Application 1 Application 2 Application 3 Application 4

How It Works

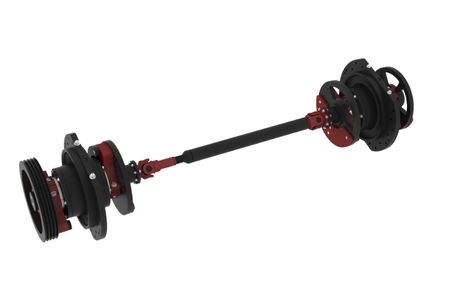

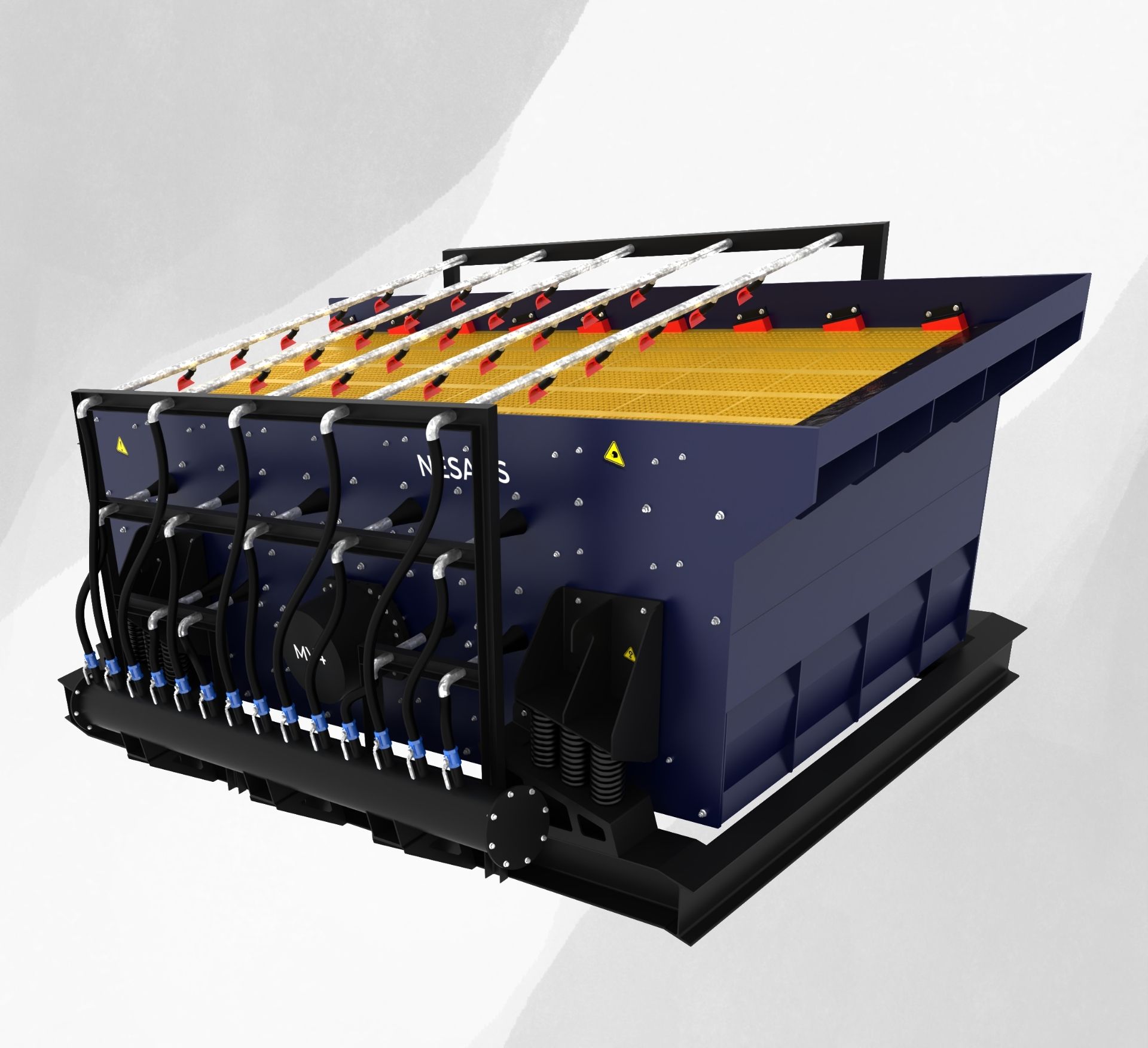

The Nesans VX Series operates using a modular drive mechanism that ensures smooth and efficient screening. At the core of its design is a modular bearing housing, where each module contains a pair of heavy-duty bearings. These housings are mounted on either side of the screen and are interconnected by a robust cardan shaft, which synchronizes the motion and distributes dynamic forces evenly across the machine.

As the motor drives the shaft, the eccentric weights in the bearing housings generate a consistent linear or elliptical vibration pattern, depending on the configuration. This motion causes the material to move across the screen surface, stratifying and separating it into defined fractions. The combination of modular construction and dual-bearing stability results in reduced vibration stress on the structure, efficient material flow, and the flexibility to handle both wet and dry screening applications with precision.

Features and Advantages

01

Configurable Screening Media

Compatible with wire mesh, perforated sheets, and polyurethane panels for application-specific performance.

02

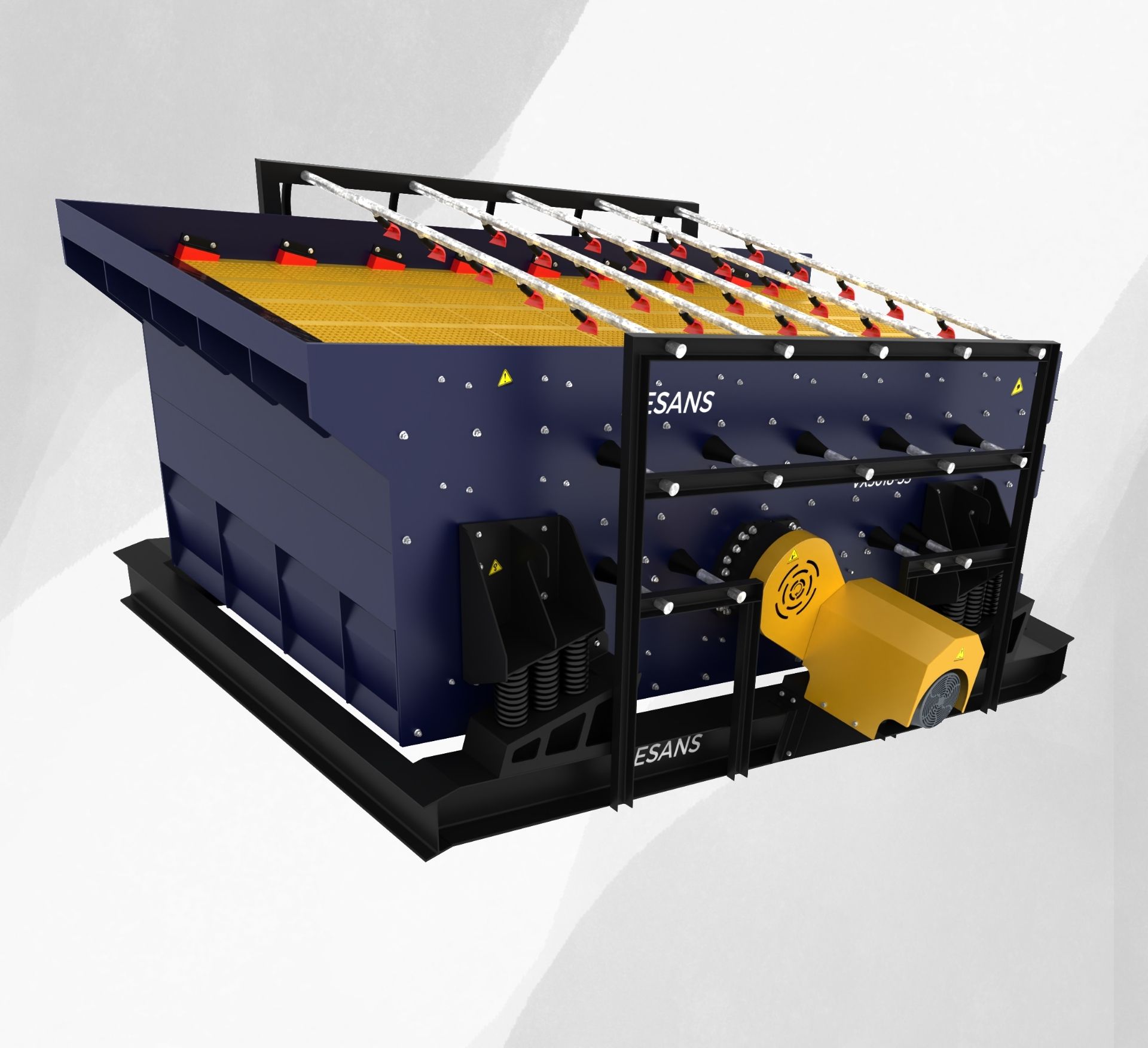

High Compression Springs

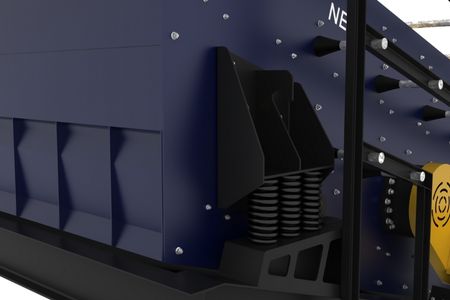

Heavy-duty springs absorb dynamic loads, ensuring stable operation and extended equipment life.

03

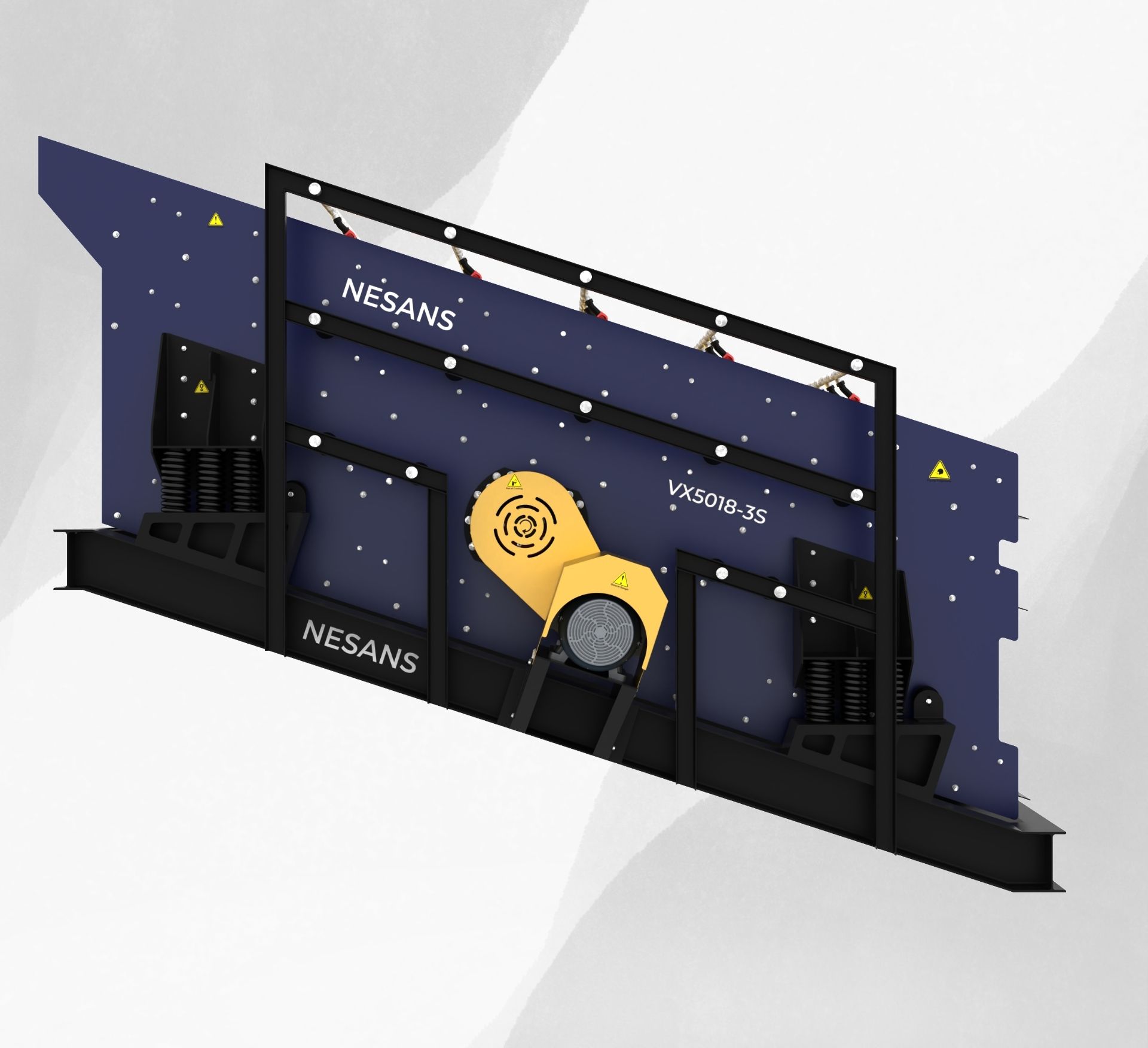

Modular Drive System

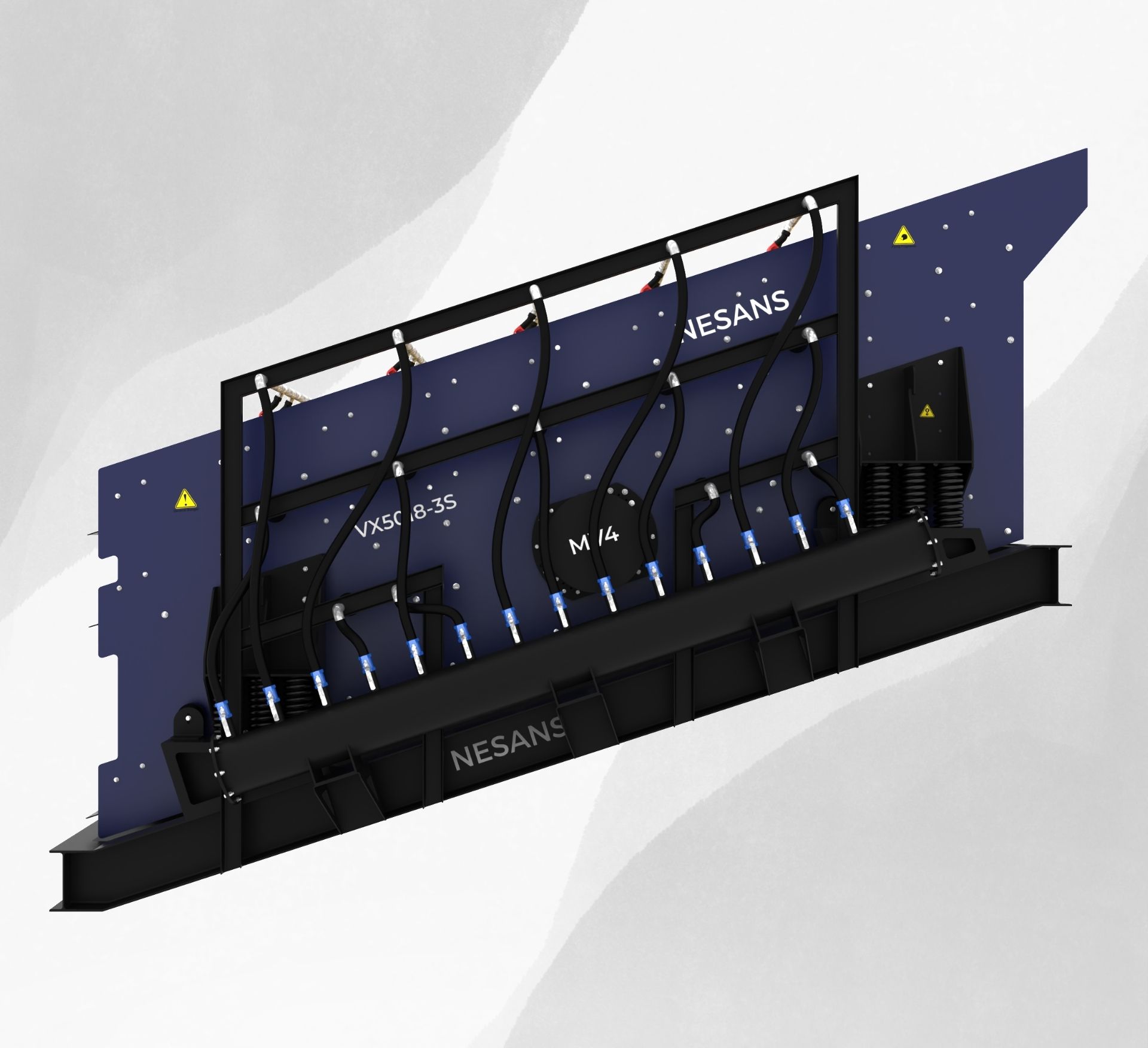

Independent bearing modules linked by a cardan shaft ensure balanced vibration and easy maintenance.

04

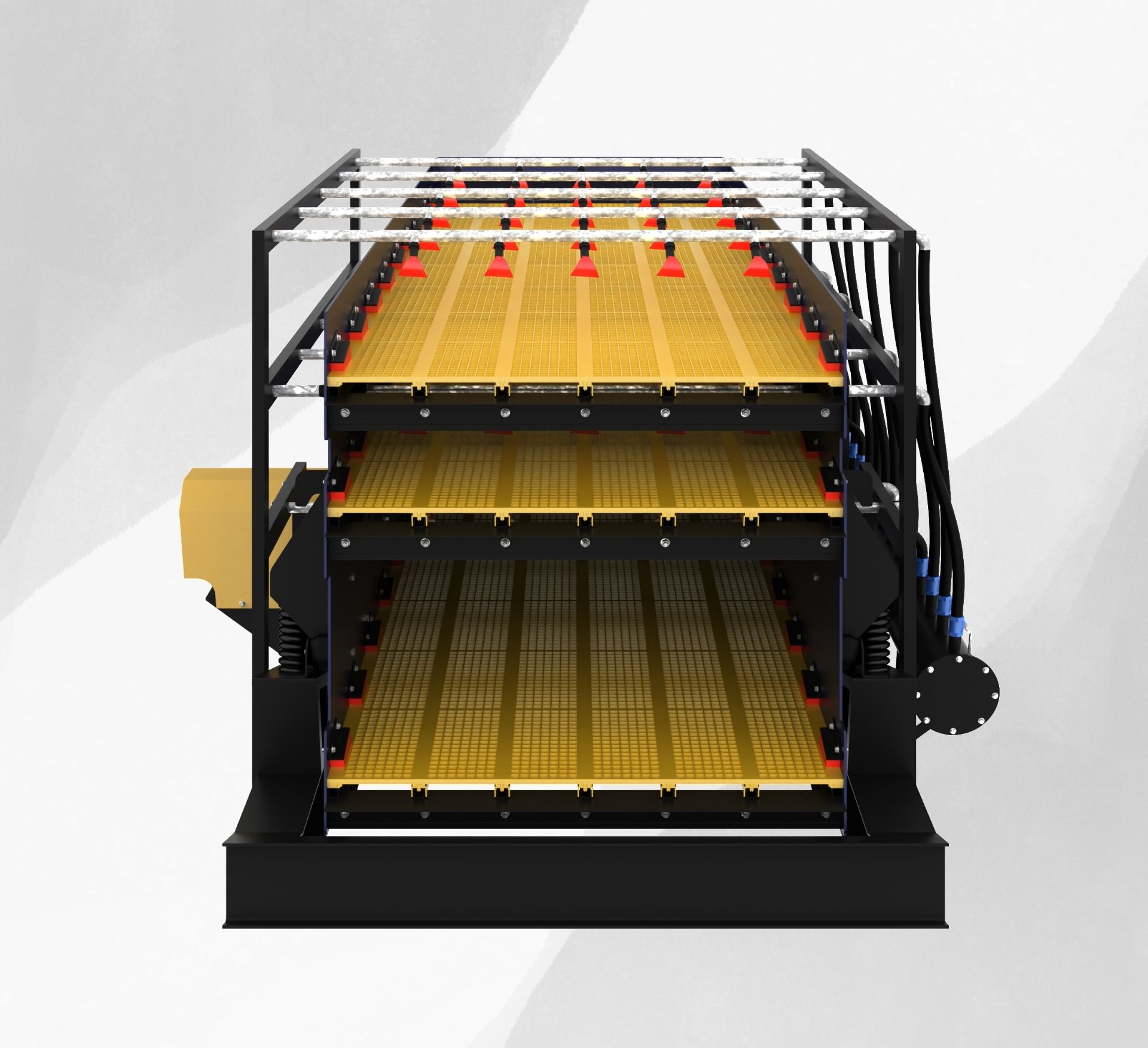

Wet Screening Applications

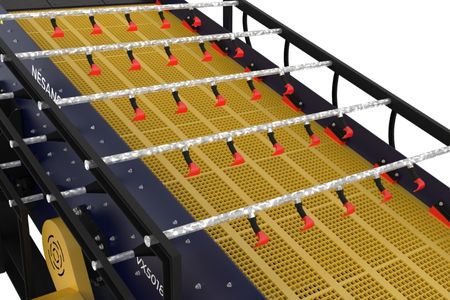

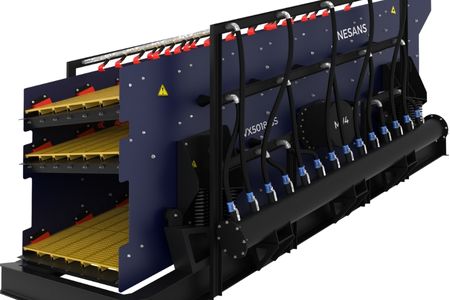

Integrated spray bars enhance material washing and efficiency in wet screening setups.

Specifications

Model No.	Screen Size (mm)	Number Of Decks (Nos)	Type (Stage)	Screen Area/Deck (Sq.meter)	Approx Weight (Kg)	Motor Power (Kw)	Capacity (mtph)
VX4015-4S	4200 X 1500	4	Secondary / Tertiary	6	5100	15	200
VX4015-3S	4200 X 1500	3	Secondary / Tertiary	6	4300	15	200
VX4015-2S	4200 X 1500	2	Secondary / Tertiary	6	3500	15	200
VX4015-3SP	4200 X 1500	3	Primary	6	4300	15	200
VX4015-2SP	4200 X 1500	2	Primary	6	3500	15	200
VX4518-4S	4500 X 1800	4	Secondary / Tertiary	8	5400	22	300
VX4518-3S	4500 X 1800	3	Secondary / Tertiary	8	4800	15	300
VX45182S	4500 X 1800	2	Secondary / Tertiary	8	4000	15	300
VX4518-3SP	4500 X 1800	3	Primary	8	4800	22	300
VX4518-2SP	4500 X 1800	2	Primary	8	4000	15	300
VX5020-4S	5000 X 2000	4	Secondary / Tertiary	9	5600	22	350
VX5020-3S	5000 X 2000	3	Secondary / Tertiary	9	5000	22	350
VX5020-2S	5000 X 2000	2	Secondary / Tertiary	9	4200	15	350
VX5020-3SP	5000 X 2000	3	Primary	9	5000	22	350
VX5020-2SP	5000 X 2000	2	Primary	9	4200	22	350
VX6020-4S	6000 X 2000	4	Secondary / Tertiary	11	8700	30	500
VX6020-3S	6000 X 2000	3	Secondary / Tertiary	11	7500	30	500
VX6020-2S	6000 X 2000	2	Secondary / Tertiary	11	6600	22	500
VX6020-3SP	6000 X 2000	3	Primary	11	7500	22	500
VX6020-2SP	6000 X 2000	2	Primary	11	6600	22	500
VX6024-4S	6000 x 2400	4	Secondary	12	10500	30	550

Model No.	Screen Size (ft)	Number Of Decks (Nos)	Type (Stage)	Screen Area/Deck (Sq.ft)	Approx Weight (lbs)	Motor Power (Hp)	Capacity (stph)
VX4015-4S	14 X 5	4	Secondary / Tertiary	65	11243	20	220
VX4015-3S	14 X 5	3	Secondary / Tertiary	65	9479	20	220
VX4015-2S	14 X 5	2	Secondary / Tertiary	65	7716	20	220
VX4015-3SP	16 X 5	3	Primary	65	9479	20	220
VX4015-2SP	14 X 5	2	Primary	65	7716	20	220
VX4518-4S	15 X 6	4	Secondary / Tertiary	90	11904	30	330
VX4518-3S	15 X 6	3	Secondary / Tertiary	90	10582	20	330
VX45182S	15 X 6	2	Secondary / Tertiary	90	8818	20	330
VX4518-3SP	15 X 6	3	Primary	90	10582	30	330
VX4518-2SP	15 X 6	2	Primary	90	8818	20	330
VX5020-4S	16 X 6	4	Secondary / Tertiary	96	12345	30	385
VX5020-3S	16 X 6	3	Secondary / Tertiary	96	11023	30	385
VX5020-2S	16 X 6	2	Secondary / Tertiary	96	9259	20	385
VX5020-3SP	16 X 6	3	Primary	96	11023	30	385
VX5020-2SP	16 X 6	2	Primary	96	9259	30	385
VX6020-4S	20 X 6	4	Secondary / Tertiary	120	19180	40	551
VX6020-3S	20 X 6	3	Secondary / Tertiary	120	16534	40	551
VX6020-2S	20 X 6	2	Secondary / Tertiary	120	14550	30	551
VX6020-3SP	20 X 6	3	Primary	120	16530	30	551
VX6020-2SP	20 X 6	2	Primary	120	14550	30	551
VX6024-4S	20 x 7	4	Secondary	130	23148	40	606
