Inclined Vibrating Screens

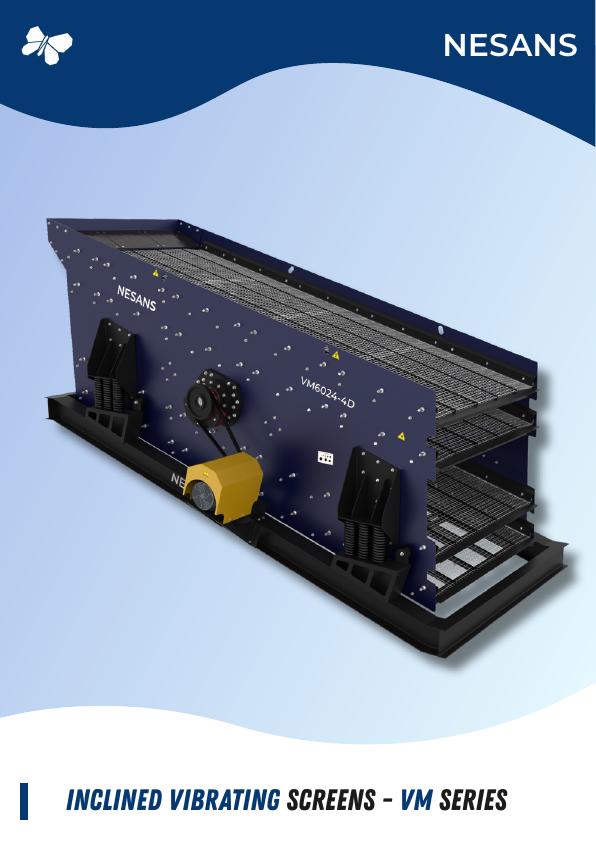

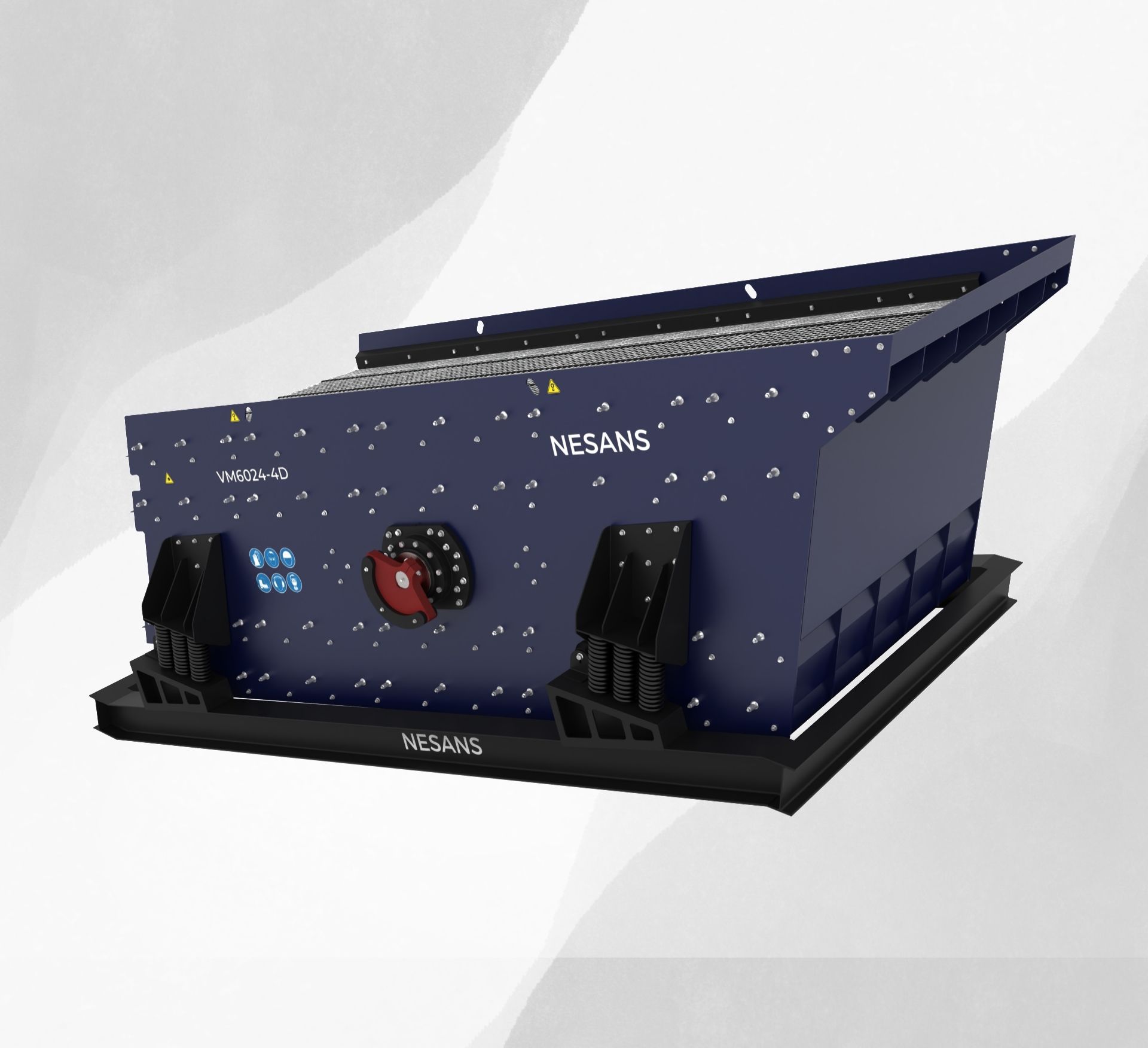

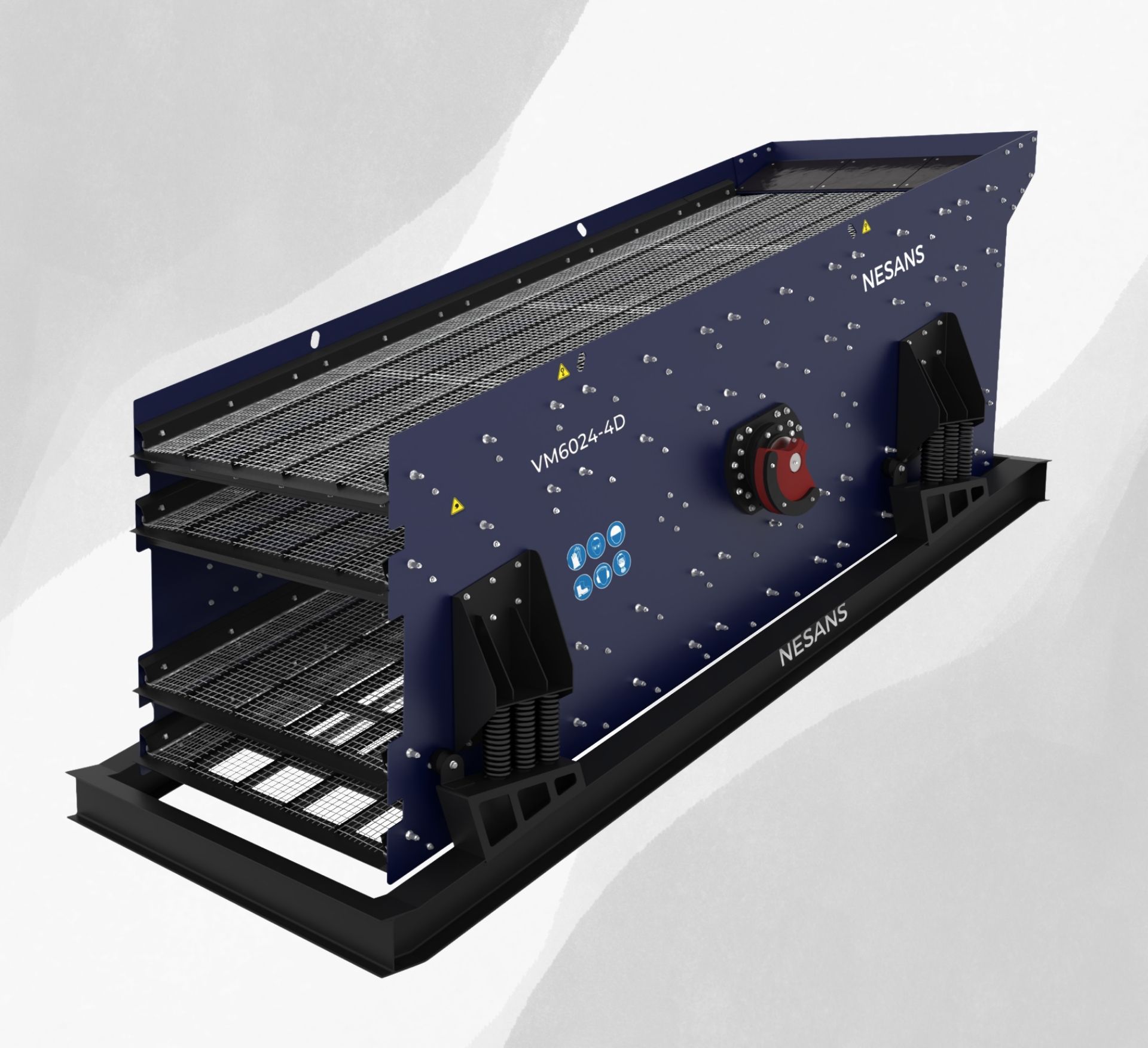

Inclined Vibrating Screens - VM Series

The Nesans VM Series Inclined Vibrating Screens are designed for high-capacity and efficient screening in a wide range of applications, from quarrying and mining to sand and gravel processing. Featuring a rugged design and circular motion technology, these screens ensure consistent material flow and effective separation across multiple deck configurations.

Built around a reliable single-shaft counterweight mechanism, the VM Series delivers smooth operation and long service life even under demanding conditions. Its inclined design promotes faster material stratification, while the robust construction ensures minimal downtime and low maintenance.

With a focus on versatility and performance, the VM Series is compatible with a variety of screening media and can be customized to suit specific material characteristics and production requirements. Whether used for scalping or final grading, it offers dependable screening efficiency every time.

Applications:

Quarried Stone Mineral Ores Recycled Concrete River Gravel Fractured Gravel Cubicle Particles Super Pave Products

How It Works

The Nesans VM Series Inclined Vibrating Screens operate on the principle of single-shaft counterweight drive. At the heart of the system is a robust shaft mounted with a precisely balanced counterweight, which rotates to generate circular motion. This consistent circular vibration lifts and stratifies the material across the screen deck, promoting efficient separation and throughput.

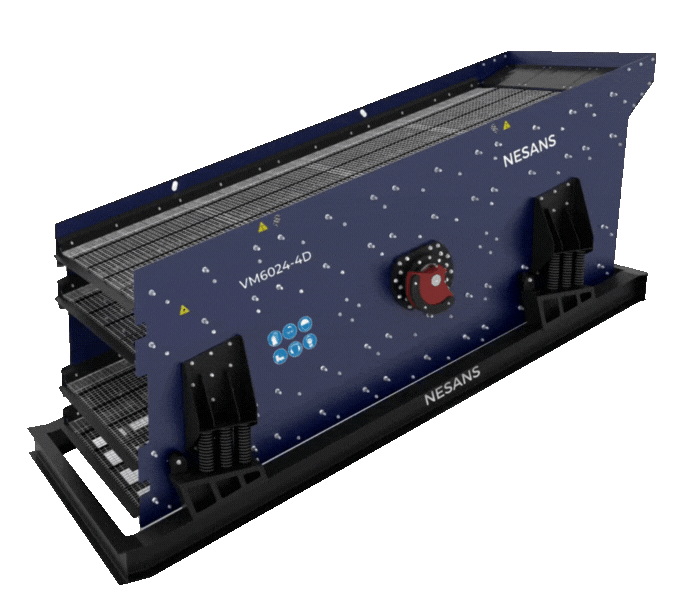

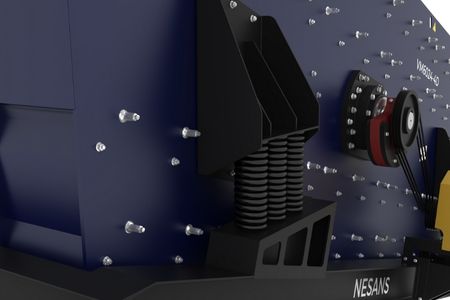

Mounted on heavy-duty coil springs, the inclined screen frame moves in a circular trajectory, allowing material to travel smoothly while fines pass through the screening media. The simple yet powerful design ensures excellent screening efficiency for both coarse and fine materials, making it ideal for quarrying, mining, and mineral processing operations.

Features and Advantages

01

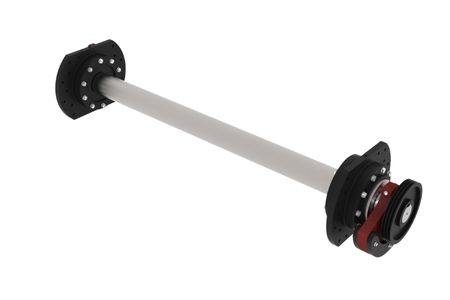

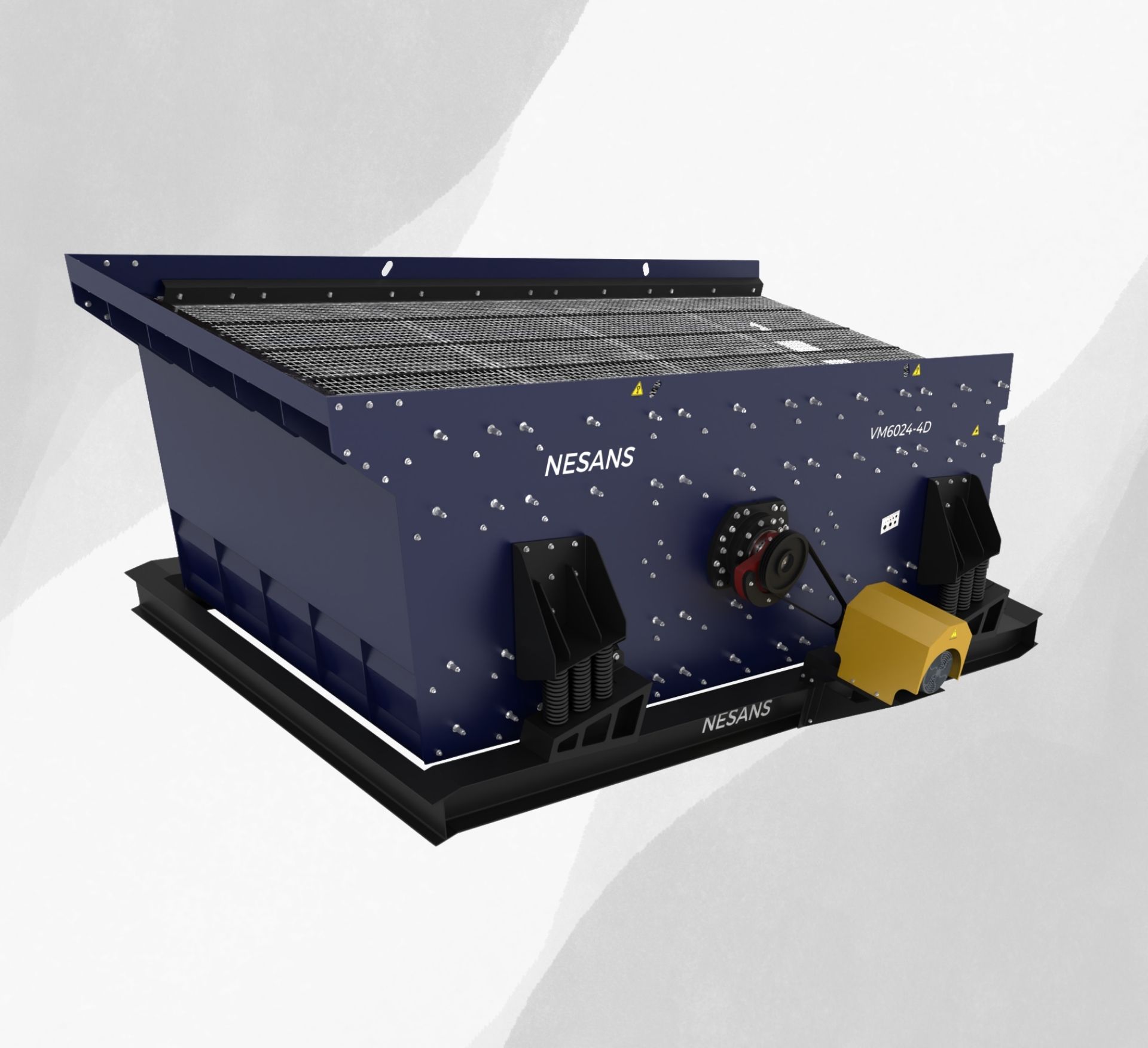

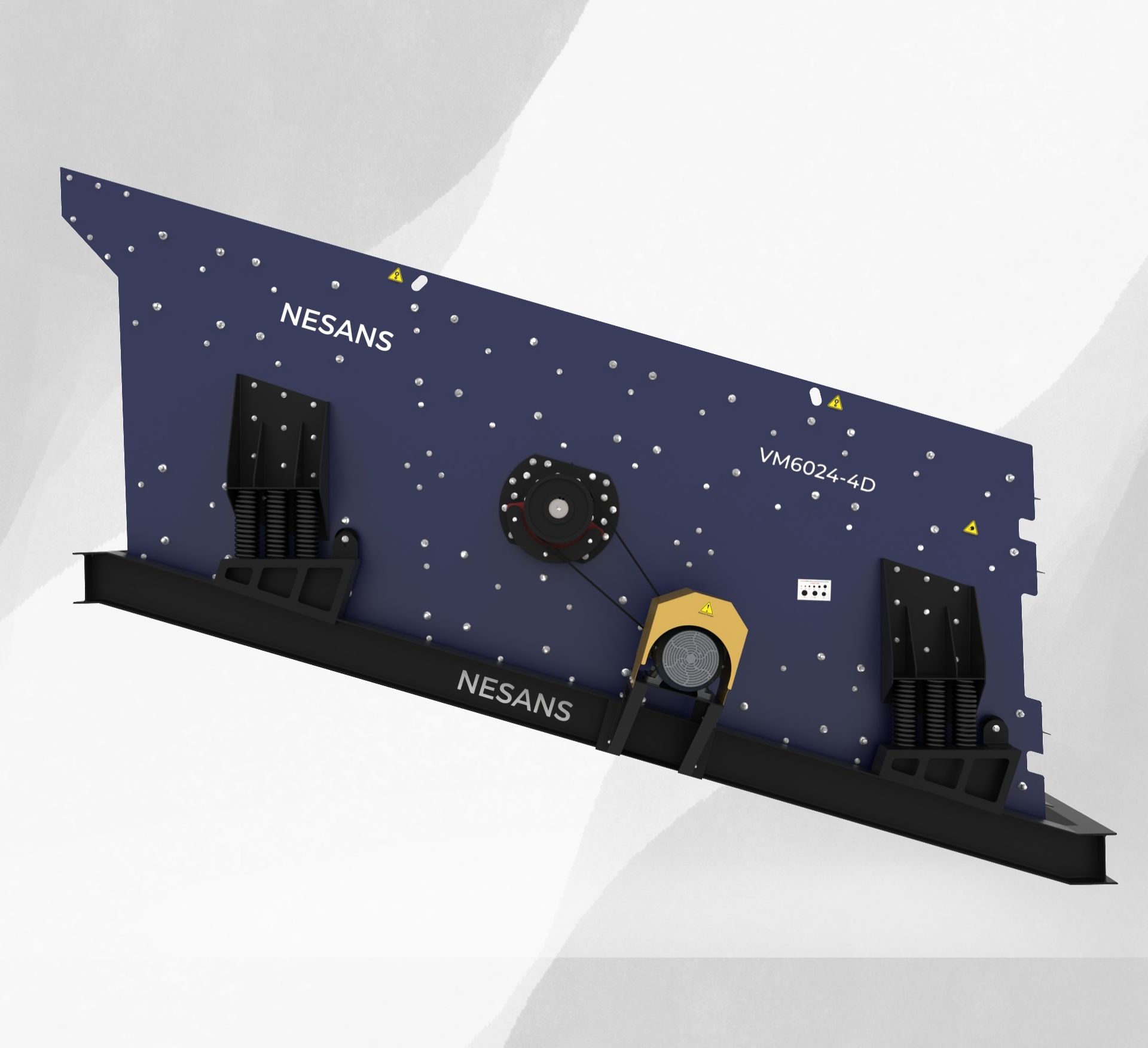

Drive

Proven single-shaft counterweight drive delivers stable circular motion for consistent screening performance.

02

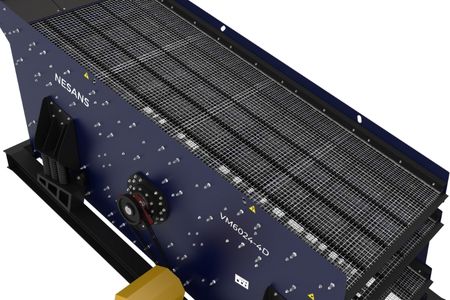

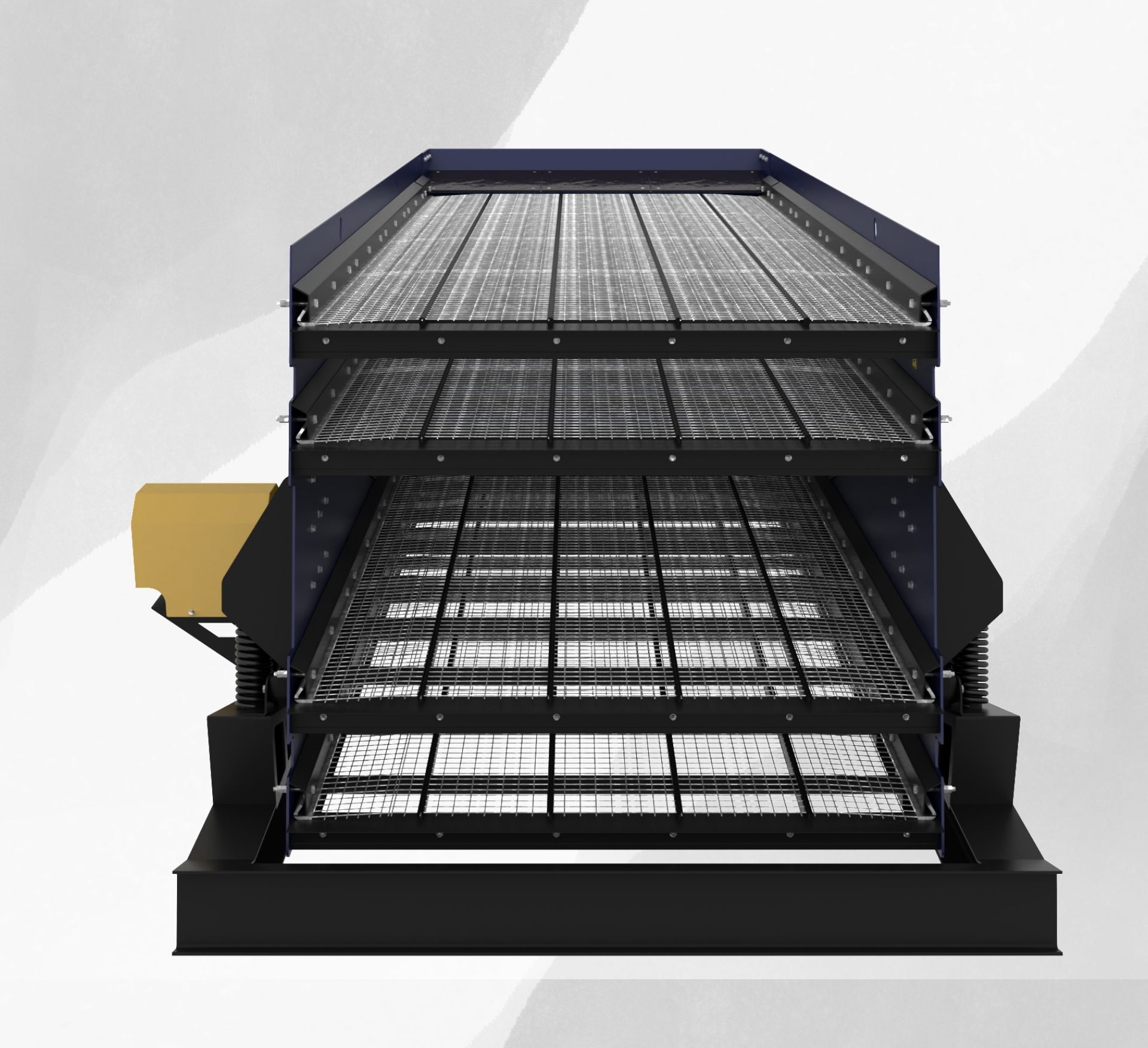

Wire Mesh Configuration

Supports a variety of mesh sizes and patterns for precise material separation.

03

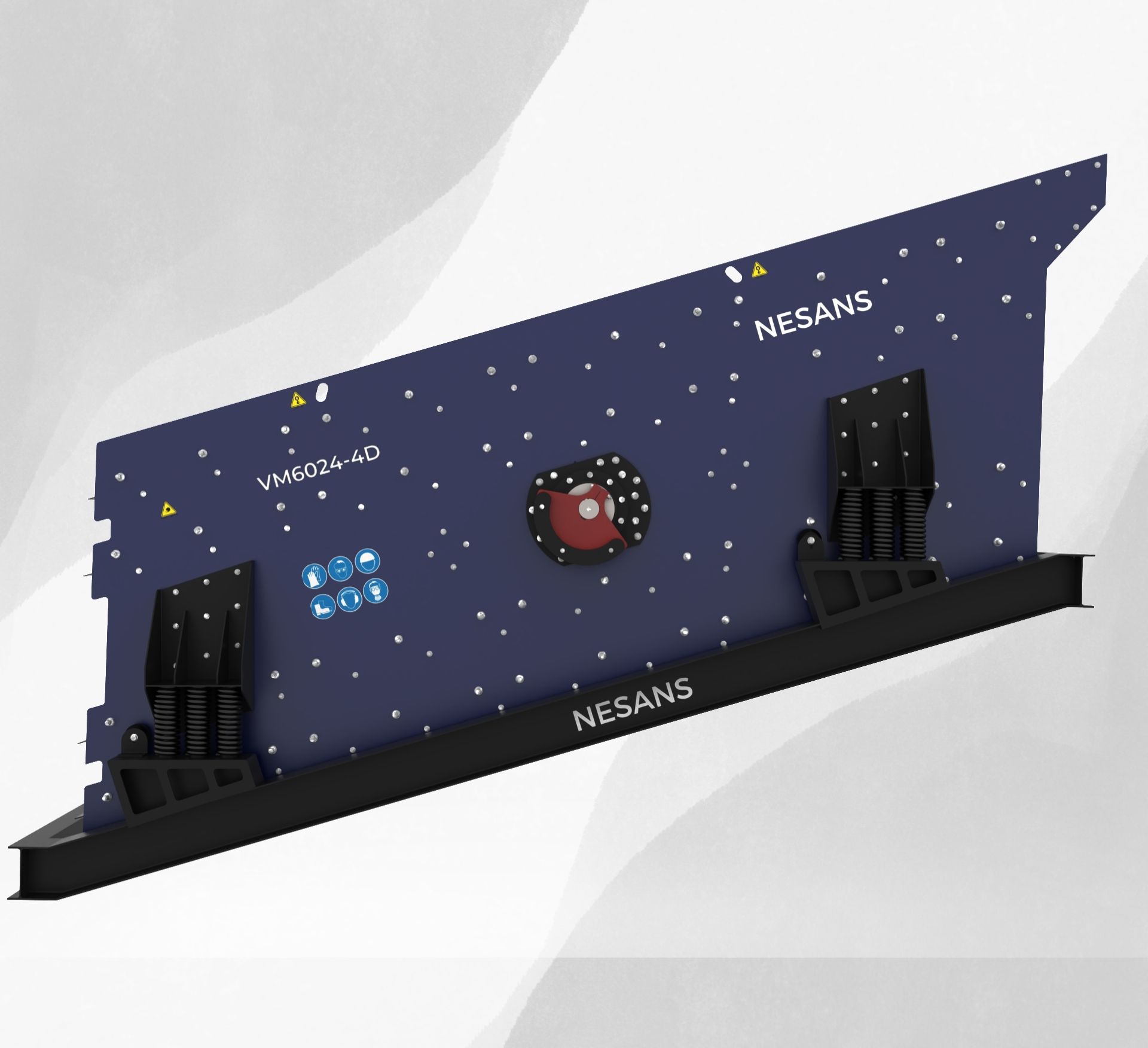

High Tensile Body Plates

Rugged construction with high-strength steel plates ensures durability under heavy loads.

04

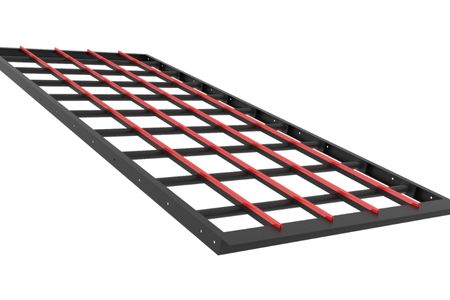

Rubber Beading

Fitted along screen panel edges to minimize vibration-induced wear and reduce noise during operation.

Specifications

Model No.	Screen Size (mm)	Number Of Decks (Nos)	Screen Area/Deck (Sq.meter)	Approx Weight (Kg)	Motor Power (Kw)
60204D	6000 X 1800	4	11	6500	22.5
60203D	6000 X 1800	3	11	5800	18.8
60202D	6000X1800	2	11	5200	18.8
54184D	5400 X 1800	4	10	5900	22.5
54183D	5400 X 1800	3	10	4800	18.8
54182D	5400 X 1800	2	10	3800	18.8
50184D	5000 X 1800	4	9	5420	18.8
50183D	5000X1800	3	9	4430	15
50182D	5000 X 1800	2	9	3230	11
50154D	5000 X 1500	4	7	4700	11
50153D	5000 X 1500	3	7	3800	7.5
50152D	5000 X 1500	2	7	2880	11
50151D	5000 X 1500	1	7	2250	7.5
43184D	4300 X 1800	4	8	5000	15
43183D	4300 X 1800	3	8	4160	15
43182D	4300 X 1800	2	8	3000	11
43154D	4300 X 1500	4	7	4300	11
43153D	4300 X 1500	3	7	3300	11
43152D	4300 X 1500	2	7	2550	7.5
43124D	4300 X 1200	4	5	3350	11
43123D	4300 X 1200	3	5	2750	7.5
43122D	4300 X 1200	2	5	2200	7.5
36154D	3600 X 1500	4	6	3170	11
36153D	3600 X 1500	3	6	2650	11
36152D	3600 X 1500	2	6	1960	7.5
36124D	3600 X 1200	4	4	3100	11
36123D	3600 X 1200	3	4	2500	7.5
36122D	3600 X 1200	2	4	2160	7.5
30154D	3000 X 1500	4	5	3100	11
30153D	3000 X 1500	3	5	2700	7.5
30152D	3000 X 1500	2	5	2160	7.5
30124D	3000 X 1200	4	4	2250	7.5
30123D	3000 X 1200	3	4	1940	7.5
30122D	3000 X 1200	2	4	1530	5.5

Model No.	Screen Size (ft)	Number Of Decks (Nos)	Screen Area/Deck (Sq.ft)	Approx Weight (lbs)	Motor Power (Hp)
60204D	20 X 6	4	120	13669	30
60203D	20 X 6	3	120	12787	25
60202D	20X6	2	120	11464	25
54184D	18 X 6	4	108	13007	30
54183D	18 X 6	3	108	10582	25
54182D	18 X 6	2	108	8378	25
50184D	16 X 6	4	96	11949	25
50183D	16X6	3	96	9766	20
50182D	16 X 6	2	96	7120	15
50154D	16 X 5	4	80	10362	15
50153D	16 X 5	3	80	8378	10
50152D	16 X 5	2	80	6349	15
50151D	16 X 5	1	80	4960	10
43184D	14 X 6	4	84	11023	20
43183D	14 X 6	3	84	9171	20
43182D	14 X 6	2	84	6614	15
43154D	14 X 5	4	70	9480	15
43153D	14 X 5	3	70	7275	15
43152D	14 X 5	2	70	5622	10
43124D	14 X 4	4	56	7385	15
43123D	14 X 4	3	56	6063	15
43122D	14 X 4	2	56	4850	10
36154D	12 X 5	4	60	6989	15
36153D	12 X 5	3	60	5842	15
36152D	12 X 5	2	60	4321	10
36124D	12 X 4	4	48	6834	15
36123D	12 X 4	3	48	5512	10
36122D	12 X 4	2	48	4761	10
30154D	10 X 5	4	50	6834	15
30153D	10 X 5	3	50	5952	10
30152D	10 X 5	2	50	4761	10
30124D	10 X 4	4	40	4960	10
30123D	10 X 4	3	40	4276	10
30122D	10 X 4	2	40	3373	7.5
